Alloy M25 Square/Round Beryllium Copper Bar For Switch Parts, Relay parts
Product Decription:
Product Description:
Grade: CUBERYLLIUM®-173
Package: Standard Seaworthy Package
Minimum Order Quantity: 30KG
Diameter: 6mm-30mm
Length: 1000-3000mm
Standard: ASTM B194,B196, AMS 4650,4651,4533,4534
Shapes: Round bars, Round wires, Round tube, Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils.
Custom shapes are available upon request.
Export to: Indonesia,Ukraine,USA,Brazil,Thailand,VietNam,Korea,lndia, Egypt.Dubai,Kuwait,Malaysia,Russia,Australia,etc.
Typical Applications:
1) Electrical Industry: Switch Parts, Relay parts, Electrical Connectors, Fuse Clips, Contact Bridges, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades.
2) Copper bar can be made as all kindsof deeping drawing and bending str-ess components,Such as pin, rivetswashers, nuts, ducts, air gauge, screenmesh, radiator parts, etc.
3) Parts with medium strength and high conductivity, such as fuse links, springs, connectors, resistance spot welding heads, seam welding rollers, die casting machines, plastic molding molds, etc.
Advantages:
1. The surface of the product is smooth and flat without rust, scratch, delamination, pinhole and bubble.
2. We have professional production equipment and use vacuum Semi- Continuous Furnace for melting, which can obtain the Cast ingot without gas,smaller segregation, Grain Refinement.
3. Various Types of Specifications. Multiple specifications optional, support customized.
4. Professional service focus on automotive electronicsindustry metal materials industry over 20 years of experience.
5. Efficient service small batch customization 500-1000 kg and we can guarantee fast delivery in 7-15 days.
Lead Time:
| Quantity(kilograms) | 1 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated
|
Chemical Composition:
| Be | 1.85-2.10 |
| Ni+Co | ≥0.2 |
| Ni+Co+Fe | ≤0.6 |
| Cu | Balance |
Detailed Specifications:
| Bar/Rod | Diameter:1.0-200mm Length:1000-6000mm |
| Sheet/Plate | Thickness:0.2-100mm Width:100-1000mm Length:1000-2000mm |
| Strip/Tape | Thickness:0.01-2.0mm Width:4-1000mm |
| Pipe/Tube | Thickness:0.1-100mm OD:1-600mm |
Service:
1) Timely Delivery: All inventory products can be delivered in time.
2) Customer service replied in a timely manner, and problems were solved in time.
Mechanical and Electrical Properties:
| Temper | Tensile Strength (Rm,Mpa) | Yield Stength Rp0.2,Mpa | Elongation (A50) % | Hardness HV | Electrical Conductivity IACS(20℃) |
| TB00 | 400-600 | 140 | 30min | 45-85 | 15-19 |
| TD04 | 620-900 | 520 | 5min | 88-103 | 15-19 |
| TH04 | 1120-1480 | 930 | 1min | 35-44 | 22-28 |

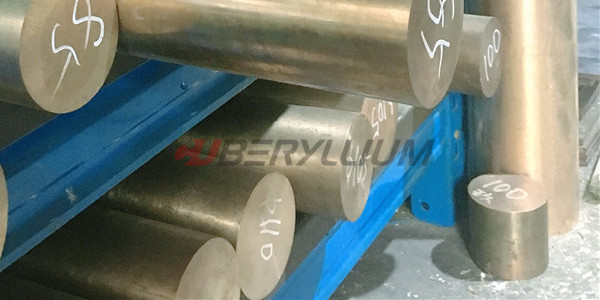

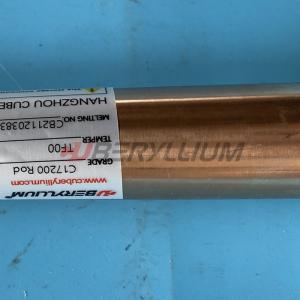

Product Photos:
Alloy M25 can be supplied in the form of bar or wire based on different design needs. Also there are different supply states for customers to choose according to different needs. C17300 also has good welding performance, wear resistance and adhesion resistance. It can be forged into parts of various shapes. Beryllium copper c17300 has better strength and wear resistance than chromium zirconium copper alloy.
FAQ:
1. How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Whatsapp or Mobile telephone.
Mobile/Wechat/Whatsapp: +86-17376550856
Email:info@cuberyllium.com
2. What is the lead time?
Usually 7 days after payment has been confirmed.
3. What is your payment terms?
T/T,L/C,Western Union,MoneyGram,Paypal.
4. What’s your advantage?
1) Professional production equipment.
2) Smooth surface.
3) Complete specification.
Product Tags:
|
|
Alloy M25 Square Round Beryllium Copper Bar For Switch Relay Parts Images
|
